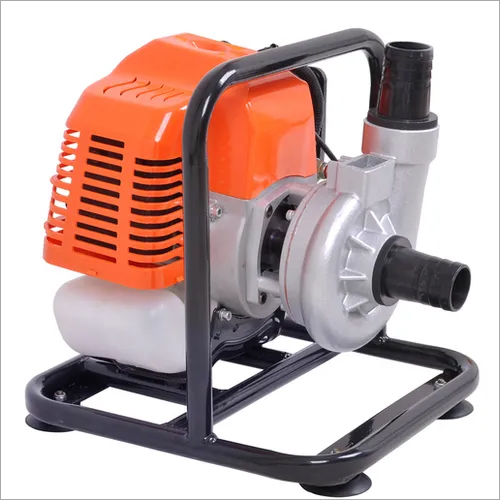

Light Portable Water Pump

Light Portable Water Pump
Light Portable Water Pump
Product Code : WPN15
Product Description

With our huge domain expertise, we are involved in providing Light Portable Water Pump to our customers. Highly efficient and rust-resistant with great capacity for industrial applications, this hydraulic press is made by using the premium quality components and ultra modern technology in line with set industry norms. Apart from this, we provide this Light Portable Water Pump to our customers in various specifications according to their application requirements. Our reputable customers can avail this hydraulic press from us at affordable rates.

Name: Light portable water pump WPN15

Category: Portable pump


Type: WPN15


Type: WPN15


Specification: 42.7cc

Features:

  • Low maintenance
  • Sturdy construction
  • Easy installation
  • Long shelf life

Products Technical Details:


WPN517 WPN402
Water Pump Type Centrifugal Centrifugal
Outlet Size (inch)/(mm) 1.5" / 40 1.5" / 40
Inlet Size(inch)/(mm) 1.5" / 40 1.5" / 40
Displacement(L/M) 330 300
Lift(m) 33-35 20-30
Suction(m) 5--8 5--8
Engine Model IE44F-5 IE40F-6
Recommend Power Using 2.0PS(1.45kW)/6500rpm 2.0PS(1.45kW)/6500rpm
Max Torque 11N.m/2500rmp 11N.m/2500rmp
Clutch Speed 6200(rpm) 6200(rpm)
Idel speed 3300rpm 3300rpm
Max speed 11000rpm 11000rpm
Start Model Recoil Recoil
Fuel 25:01:00 25:01:00
Fuel Tank Capacity 1.2 L 1.2 L
Fuel Cinsumption 210 g/hp-hr 210 g/hp-hr
Packing Dimension 410x310x310 410x310x310
Net Weight(kgs) 8.7 8.7


General Specification

Type of engine

2 stroke

Cubic capacity

42.7 cc

Engine style

Air cooler

Max power (Kw)

1.4kW

Outlet Pipe

1.5 inch

Inlet Pipe

1.5 inch

Oil usage petrol/oil

25:01:00

Lift Height

33-35 meters

Certificate

CE, PEA, EUROIL

Engine

Carburator

Chinese

Starter (Easy or Rigid)

Rigid

Maximum power speed (rpm) disk

9500

Maximum power speed (rpm) wire

9000

Cylinder

Chrome coated and harden

Pump Body

Inlet pipe size

1.5 inch (38mm)

Outlet pipe size

1.5 inch (38mm)

Discharge volume (L/h)

300

Water pump type

Direct shaft transmition

Lift (m)

33-35m

Suction (m)

4-8m

Other

Weight

7.8

Sound power level

114Db
